AR-820 RGB Switch Panel with APP, Toggle/ Momentary/ Pulsed Mode Supported (Two-Sided Outlet)

$269.99 USD - $294.99 USD
TYPE: AR-820 RGB Switch Panel
Regular price $269.99 USD
Regular price $299.99 USD Sale price $269.99 USD
-$30.00 USD
Regular price $269.99 USD
Regular price $299.99 USD Sale price $269.99 USD

The New RGB switch panel is now available!

We do some big upgrades on switch panel! For the AR-800 panel (One-side Outlet) cannot meet the needs of some customers, so we launched the AR-820 panel (Two-side Outlet), the power is as high as 1400W.

Difference between AR-800 and AR820
AR-800:
one-side outlet, max power rating of 1200W
AR-820:
two-side outlet, max power rating of 1400W

★ Upgraded Functions:
 RGB backlight - Unlimited color options match dash lighting and vehicle
 3 mode setting - Toggle/ Momentary/ Pulsed
 Bluetooth APP control - Access to accessories no matter whether you are in the vehicle (The QR code of APP can be found in the picture)
 Group setting - Set up a group via APP to control 2 or more lights at the same time
 DIY switch panel - 60pcs stickers/ 200 default icons/ custom picture from your own album

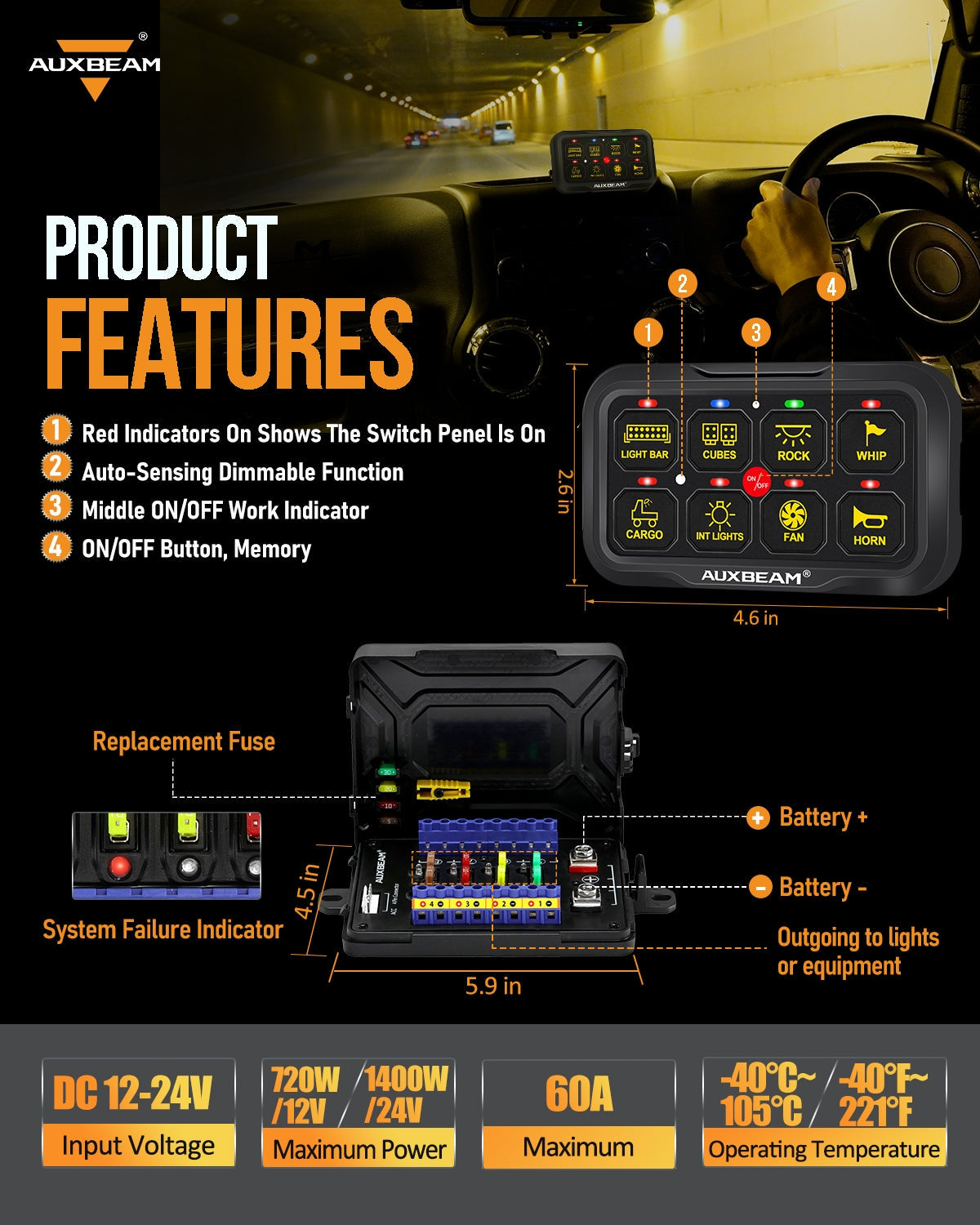

Specification:

Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1400W
Switch operation: On-Off
Operating temperature: -40°C - +105°C
Waterproof rating: IP65

Features:

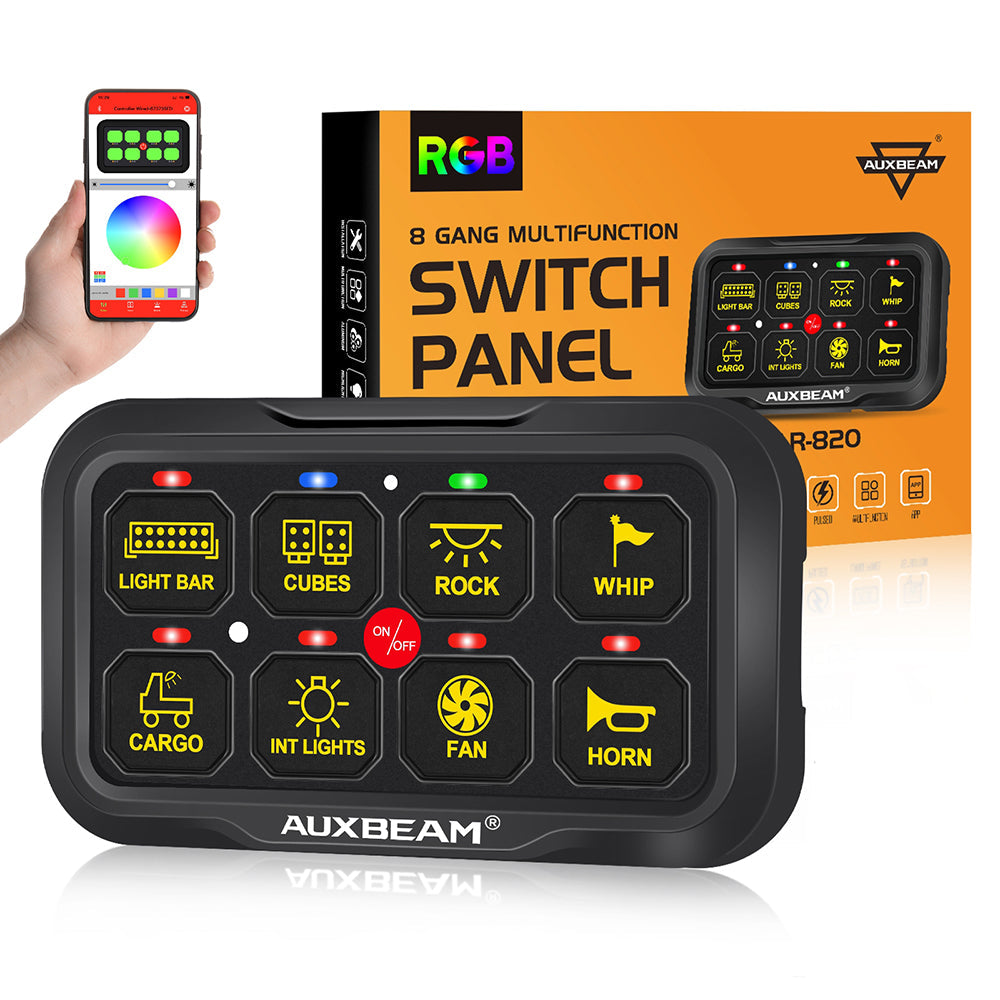

▶AR-820 RGB Switch Panel

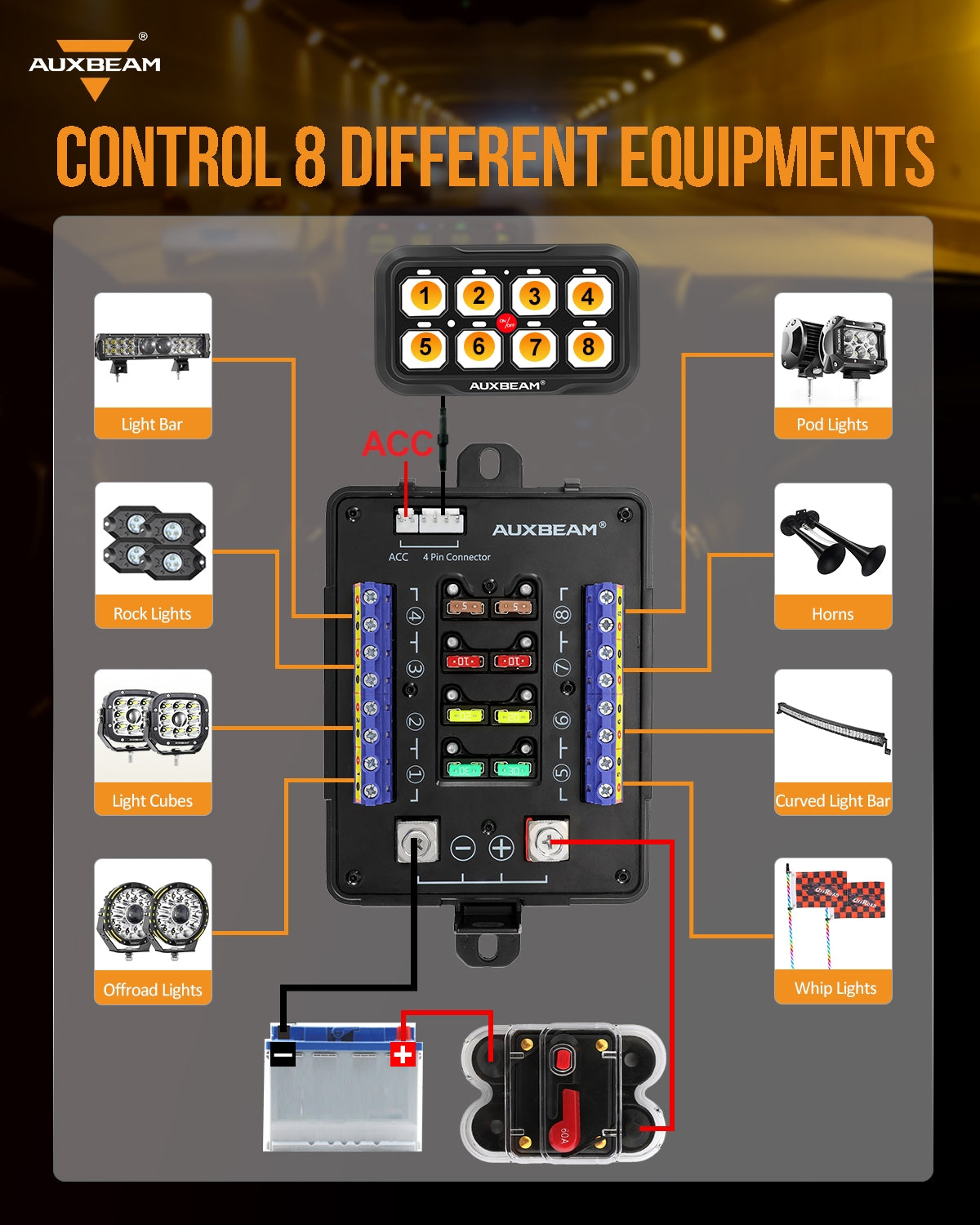

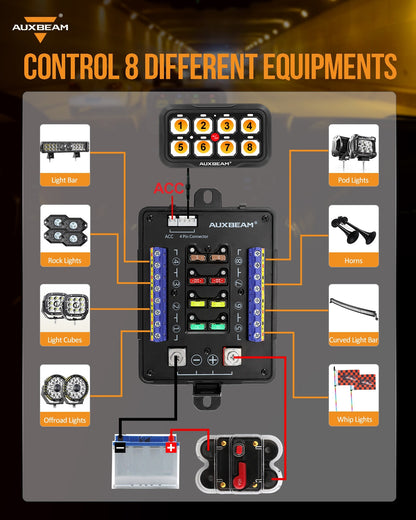

  • 8-Gang two-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
  • 2 control methods - Switch panel & Bluetooth APP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.

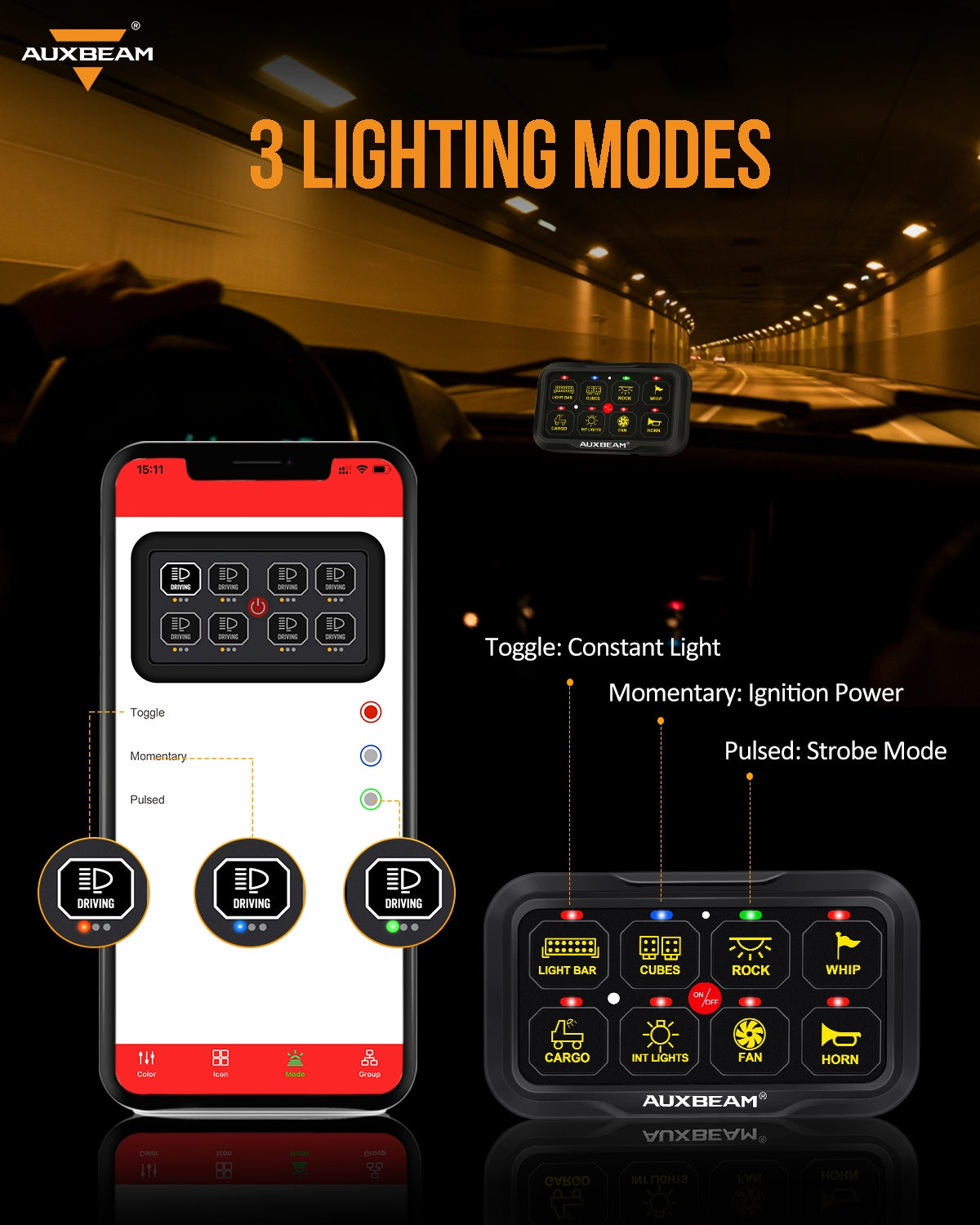

  • 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
 RED-Toggle, Constant light mode (Great for things like fog lights or driving. )
 BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.

 GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.

  • RGB backlight color. Adjust backlight color and brightness to match your vehicle.
  • Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
  • Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
  • DIY button icon on APP. 200 default icons or use your own photos from the phone album.
  • Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
  • Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
  • Waterproof IP65, high sensitivity, stability and strong anti-interference ability.
  • Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter makes it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
  • Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
  • With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
▶3.94FT Inch Extension Cable
  • There is a 4-pin aviation video cable, a cable for transmitting video and power.
  • It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
  • Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
  • Power input DC 12V - DC 24V.
  • Specially thick hard wire 100% provides superb protection against EMI interference and RF interference such as automotive circuit interference.

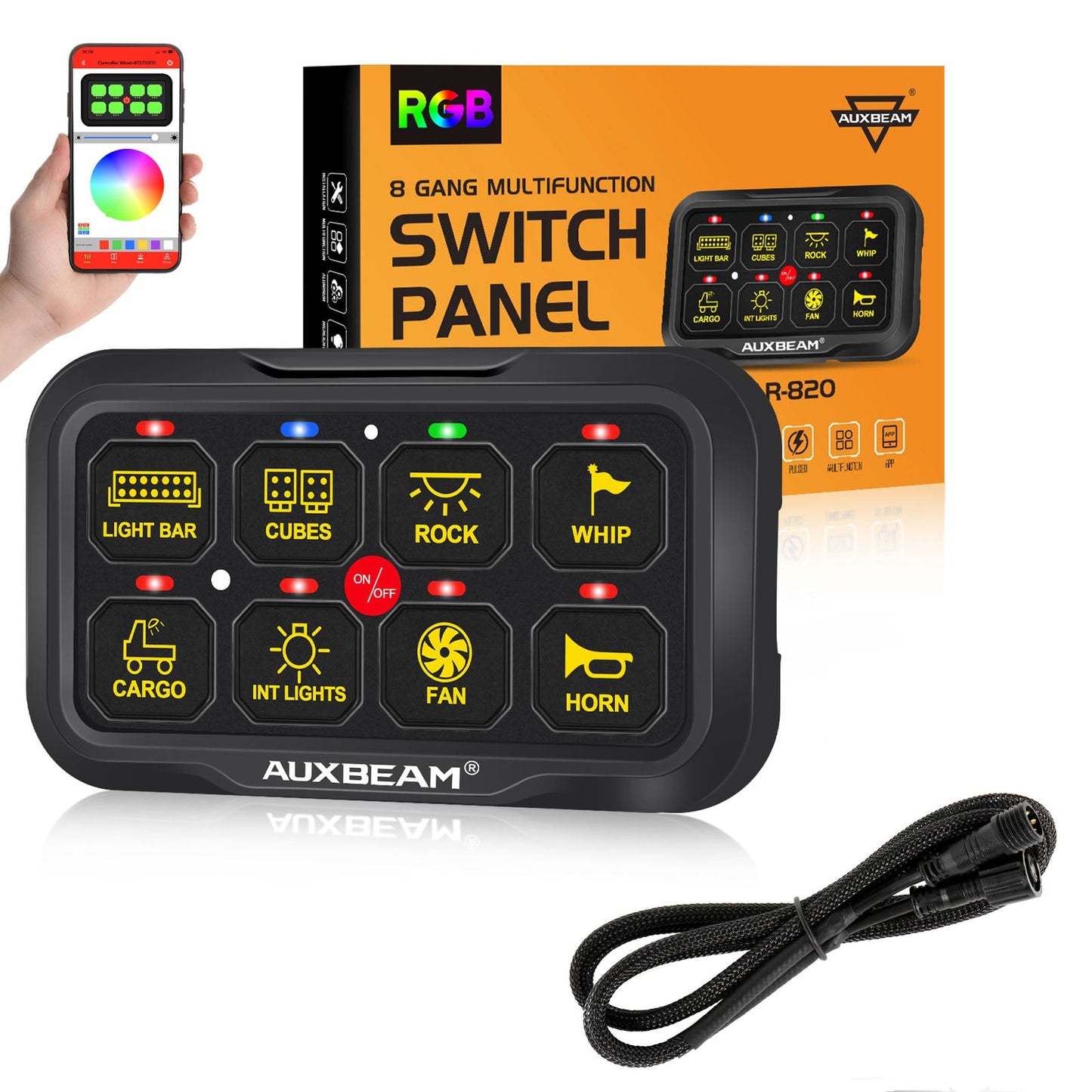

▶20FT Inch Extension Cable

  • Auxbeam Extension Cable. This 20-feet, 4-pin wiring harness extension features a Play and Plug design, allowing for effortless installation of extension wires. With ample length, it provides sufficient reach to extend your wiring harness to the desired location for installation of the controller box
  • Premium Made. Auxbeam switch panel extension boasts an especially thick hard wire, which not only enhances its strength and longevity, but also provides superior protection against EMI and RF interference, including automotive circuit interference
  • Wide Application. The Auxbeam cable extension has a broad range of applications and can be utilized to extend control over any vehicle electrical appliance for your modification needs. This includes, but is not limited to UTVs, trucks, trailers, buses, motorhomes, and long-distance parking aid sectors
  • No Splicing. This extender eliminates the need for splicing of new wires, as it allows for easy extension of existing wires. It is compatible with power input ranging from DC 12V to DC 24V, and features a professional CCTV/monitor 4-pin connector that can be used to connect a rearview camera, DVD player, TV box, or other similar devices
▶120 Universal Stickers
120 Universal Stickers works with QP008526(AR-800), QP002559(BA80), QP002983(GA80), QP006231(GB80), QP006232(BB80), QP006237(BC60), QP006238(GC60)

    Bluetooth Connection Requirements:

    • Compatible with IOS & Android devices
    • IOS 9.0 or newer version, Android 4.5 newer version
    • Download the “Switch panel” app from Apple store or Google Play Store (free download). Scan QR code on the instructions.
    • If your Android device cannot connect to the APP, please turn on GPS positioning and allow “Switch Panel” to access your phone’s location while using the APP.

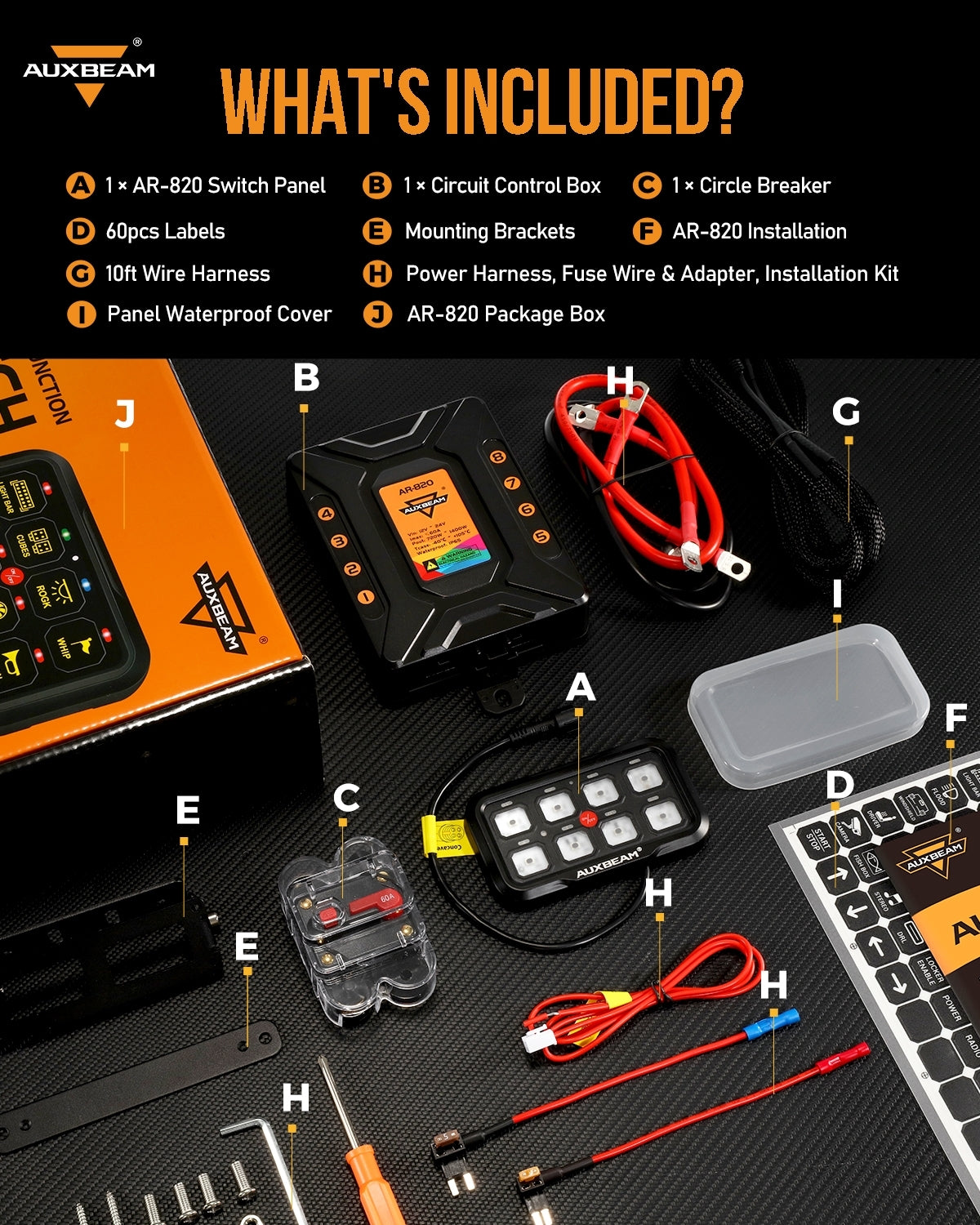

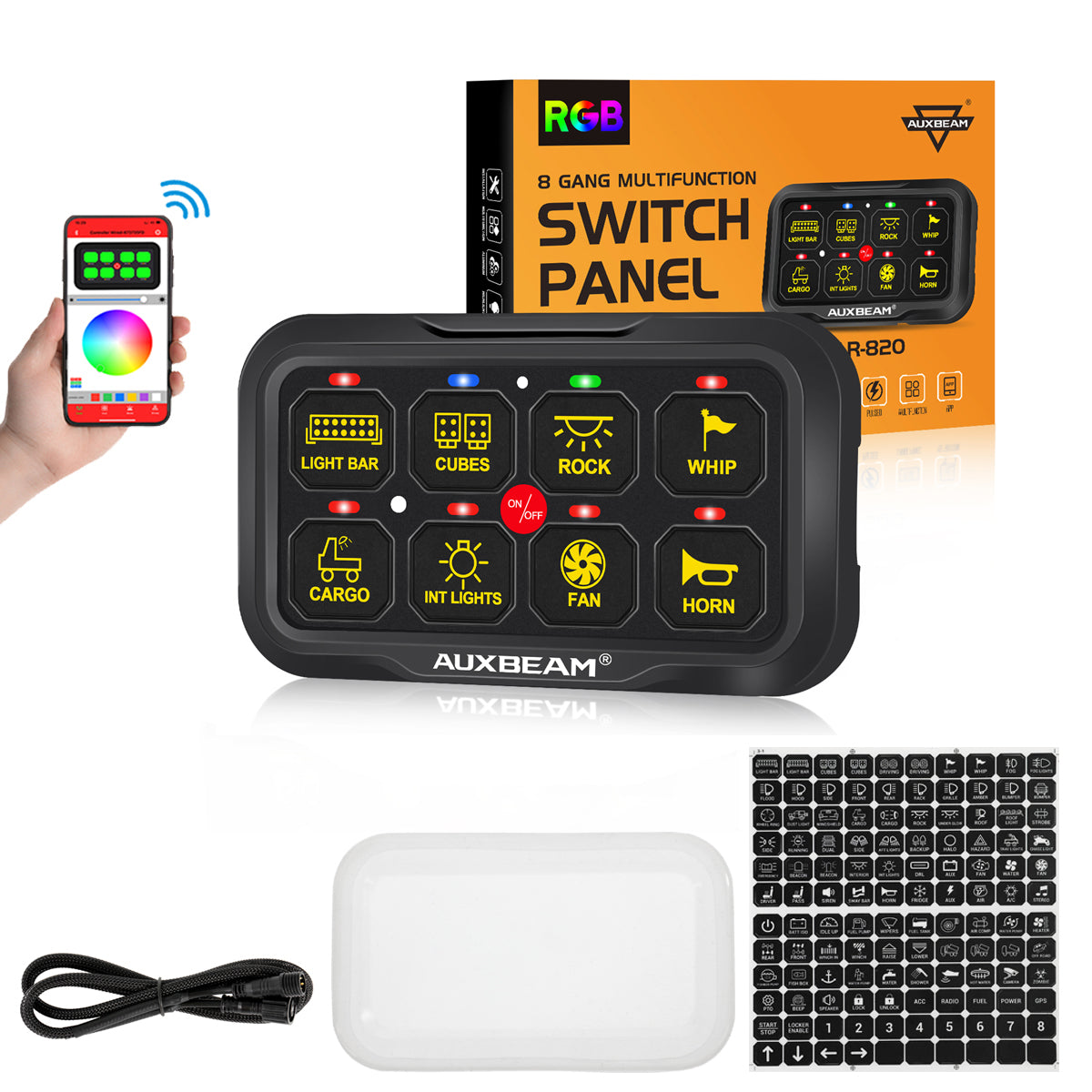

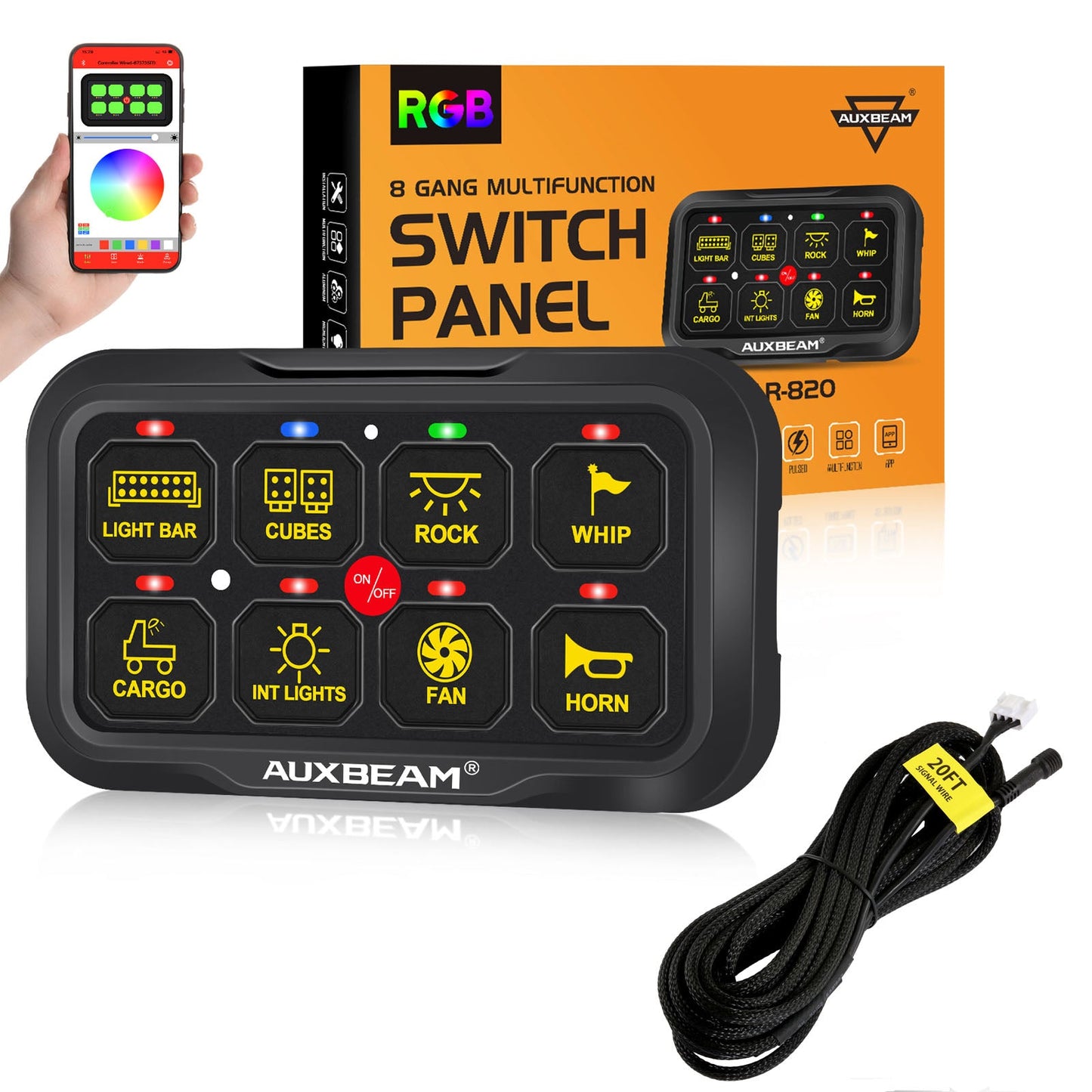

    Package Included:

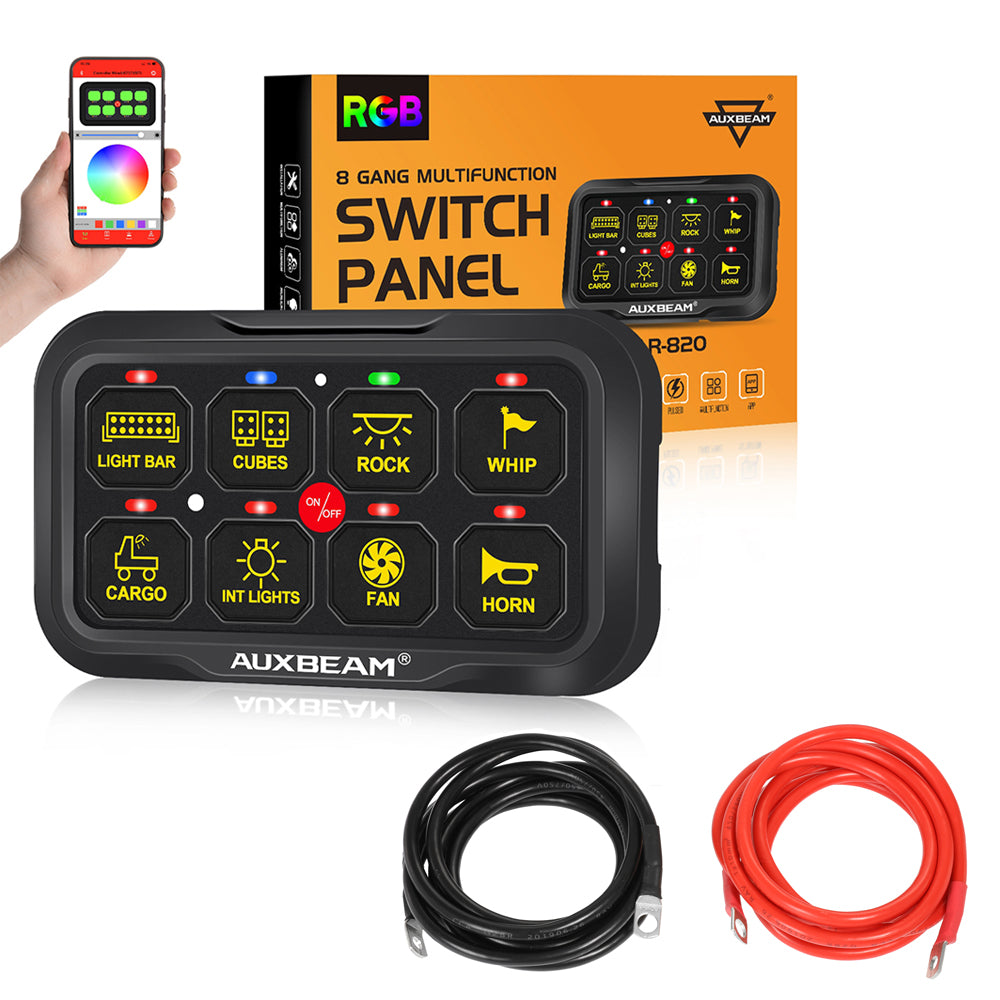

    • 1 Set of 8 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)
    • Installation Instructions
    • 1*Extension Cable(OPTIONAL)
    • 1pcs*120 Universal Stickers(OPTIONAL)
      1*Waterproof Silicone Cover(OPTIONAL)
